paceval_sNodeSpecificData Class Reference

The struct paceval_sNodeSpecificData is used by class paceval_cBaseAtomicGraphNode. More...

#include "inc/paceval_cAtomicGraphNode.h"

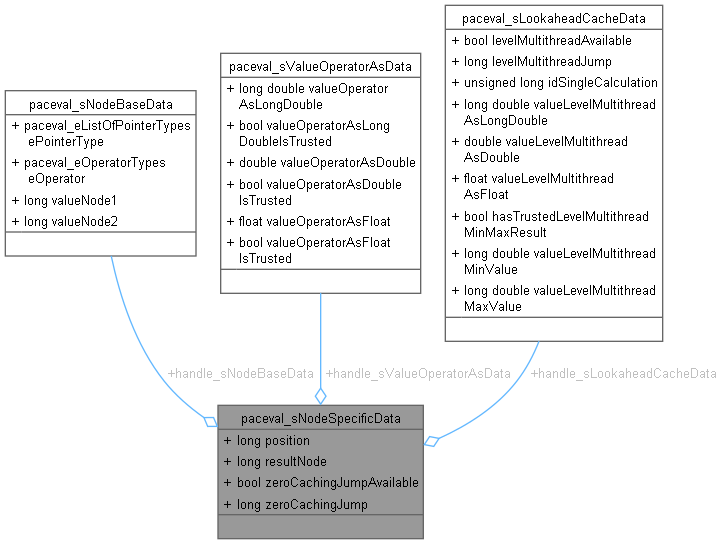

Collaboration diagram for paceval_sNodeSpecificData:

Public Attributes
long	position
long	resultNode
bool	zeroCachingJumpAvailable
long	zeroCachingJump
paceval_sNodeBaseData *	handle_sNodeBaseData
paceval_sValueOperatorAsData *	handle_sValueOperatorAsData
paceval_sLookaheadCacheData *	handle_sLookaheadCacheData

Detailed Description

The struct paceval_sNodeSpecificData is used by class paceval_cBaseAtomicGraphNode.

Member Data Documentation

handle_sLookaheadCacheData

paceval_sLookaheadCacheData* paceval_sNodeSpecificData::handle_sLookaheadCacheData

stores the pointer to the struct paceval_sLookaheadCacheData for lookahead caching

handle_sNodeBaseData

paceval_sNodeBaseData* paceval_sNodeSpecificData::handle_sNodeBaseData

stores the pointer to the struct paceval_sNodeBaseData

handle_sValueOperatorAsData

paceval_sValueOperatorAsData* paceval_sNodeSpecificData::handle_sValueOperatorAsData

stores the pointer to the struct paceval_sValueOperatorAsData

position

long paceval_sNodeSpecificData::position

stores the position in the function string (e.g. for possible error messages to the user)

resultNode

long paceval_sNodeSpecificData::resultNode

stores the node where the result of the operation should be written

zeroCachingJump

long paceval_sNodeSpecificData::zeroCachingJump

stores the target node for the jump in case of a partial calculation that would be multiplied by 0 (as an example (x>=0)*(sin(x)+cos(x)) or (x>=0)*(sqrt(x)) would be skipped for x<0)

zeroCachingJumpAvailable

bool paceval_sNodeSpecificData::zeroCachingJumpAvailable

stores whether the node is able to do zero caching, means to jump a partial calculation that would be multiplied by 0 (true) or not (false)

---

The documentation for this class was generated from the following file:

• paceval_cAtomicGraphNode.h
